14" Mitre Saws
(Select the saw of your interest below or scroll down to see them all.)
#9000 wood
| #9000H hydramatic
wood

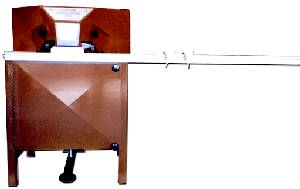

The Model #9000 is one of the
finest double mitre saw ever built! It has a cutting capacity of 4-3/4”.
Included are two sets of 14” Lazer Blades, two production stops for fast
mitering, a 60” stainless scale accurate to .009 over 60”, and chipbreaker.
The Model #9000 is foot operated and runs two 2 HP, 3450 RPM motors on
220v three-phase electricity. The perfect mitering system for shops that
need high production! . Saw Vac &
Lube System Available.
Specifications: Model #9000
Dimensions: Height 46”, Depth 31”, Width 84”
Scale: 60” Cut Capacity: 4-3/4” Foot Operated
Motors: 2, 2 HP, 3450 RPM, 220v Three-Phase
Blades: 4, 14”x 90 tooth

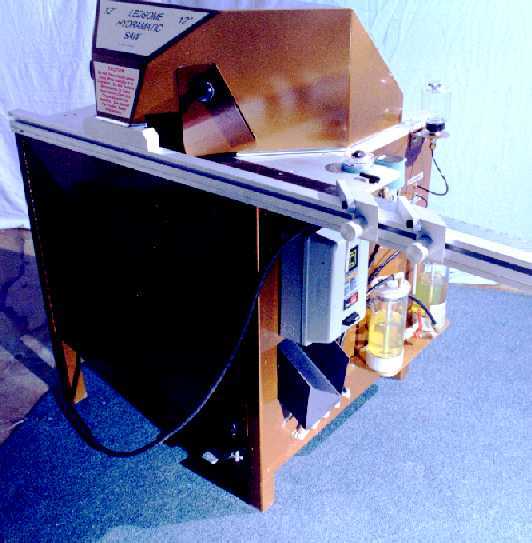

The Model #9000H is one of
the new generation of production double mitre saws. It uses a combination
hydraulic and pneumatic scheme for high-production mitering. The Model
#9000H runs off your existing air supply and 220v three-phase electricity.
As with all our mitre saws the Model #9000H is equipped with a three-position
stroke system which allows you to shorten the stroke cycle for cutting
a large volume of smaller mouldings. The Model #9000H air control regulator
allows you to vary cutting speeds for each substrate you cut. The Model
#9000H is operated with a hydramatic foot valve. Included in your Model
#9000H are two sets of lazer blades, a 60” stainless scale, chipbreaker,
and two production stops. The Model #9000H is vented with a 3” duct to
attach to your existing duct system. Lube system and saw vac available,
but not included in price.
Specifications: Model #9000H
Dimensions: Height 46”, Depth 31”, Width 84”
Scale: 60” Cut Capacity: 4-3/4” Hydramatic Foot Operated
Motors: 2, 2 HP, 3450 RPM, 220v Three-Phase
Blades: 4, 14”x 90 tooth
